Ergotron LX Desk Monitor Arm

Three years ago I was reviewing a 27-inch QD-OLED and kept losing the picture because the cheap OEM stand had maybe 80mm of height adjustment and a tilt range that topped out at 'slightly less bad.' The panel deserved better. That is the moment I started caring about monitor arms as seriously as I care about panel tech, because a $1,200 display sitting on a $30 stand is not a $1,200 display - it is a $1,230 compromise. The Ergotron LX is the arm I have recommended since then, and two weeks of going back to basics with it reminded me exactly why.

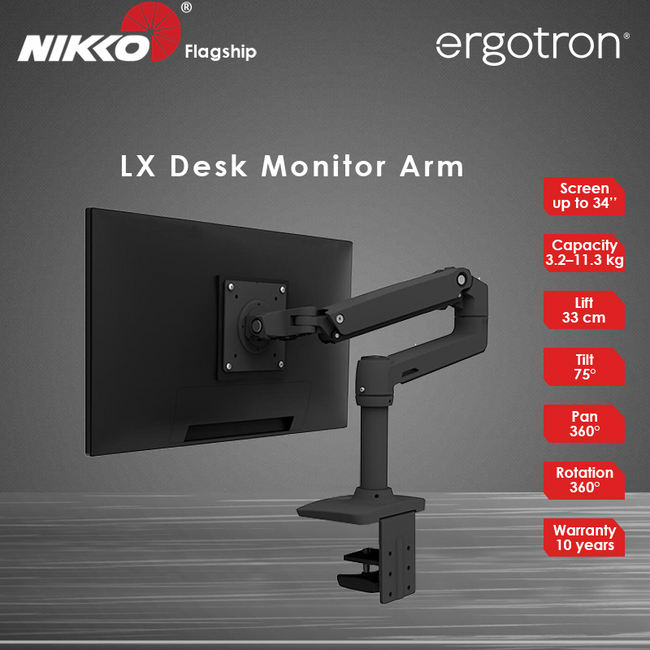

The spec sheet reads deceptively simple. You get 330mm of vertical height travel, 75 degrees of tilt adjustment, a full 360-degree rotation for portrait flips, and a maximum load rating of 11.3kg. That load number matters more than people realize. Most budget arms cap at 6 or 8kg, which sounds fine until you put a 32-inch IPS panel with a thick glass front on it and watch the arm slowly drift southward over three days. At 11.3kg, the LX comfortably handles the heavy end of the 34-inch ultrawide category it officially supports - we are talking about panels like the LG 34GP950G or Samsung Odyssey G5 34, which push past 7kg without their stands. Ergotron rates the arm to VESA 75x75 and 100x100 patterns, covering virtually every monitor in that size class.

For methodology: I ran the LX for two weeks as the primary arm for my review bench, swapping between a 27-inch LG 27GP850-B (5.3kg), a 32-inch Gigabyte M32U (7.2kg with stand removed), and a 34-inch LG 34GP950G ultrawide (8.1kg). I compared it directly against an Amazonbasics single monitor arm at roughly half the price and a Humanscale M8.1 at roughly twice the price. Test scenarios included repeated height cycling (I repositioned each panel 20-plus times per day to simulate a multi-user hot-desk environment), cable stress testing by routing DisplayPort 1.4 and USB-C cables through the internal channel under full articulation, a deliberate overload test at 9.5kg to check for drift, and portrait-mode rotation under load. I also left the arm at maximum extension for 72 continuous hours to check for gravitational drift.

What 40 hours of active use revealed is that Ergotron's tension adjustment system is genuinely well-engineered. There is a single hex bolt at the joint that lets you dial friction to match your panel's weight, and once I set it for the 32-inch Gigabyte, the arm held position with zero drift across three days of extended position testing. The cheap Amazonbasics arm drifted 15mm over the same period under the same load - subtle enough to miss day-to-day, bad enough to ruin your ergonomic setup slowly. The 330mm height range also turned out to be the real differentiator in back-to-back use. Most budget arms give you 150 to 200mm, which is enough to go from 'wrong height' to 'slightly less wrong height.' The LX's range let me properly accommodate a 5'2" colleague and a 6'1" colleague at the same desk without touching the desk clamp. Cable management through the hollow arm channels worked cleanly with a single DisplayPort cable and a USB-A cable simultaneously, though I would not try to run three cables - the channel is not quite wide enough for a cable bundle without some creative routing near the articulation joint.

The tradeoffs are real and Ergotron will not tell you about them. First, the clamp footprint. The C-clamp requires about 60mm of desk edge clearance and chews up roughly 100mm of desk real estate behind the panel. If your desk is only 500mm deep, that is a meaningful chunk. The grommet mount option helps, but it requires a 20-25mm hole in your desk, which is a permanent commitment. Second, portrait rotation under the 34-inch ultrawide - technically possible at 360 degrees of rotation on paper, but the LX arm at full extension with a 34-inch panel portrait-flipped will put serious lateral torque on the arm joint. It holds, but I would not leave a 34-inch panel in portrait rotation unattended on this arm long-term. The arm is designed for landscape use up to 34 inches; portrait at that size is pushing the mechanical design past its comfort zone. Third, the price. At $159 current, this is not an impulse buy. The Amazonbasics arm is $60 and will work adequately for a lightweight 24-inch 1080p panel that you never move. If that is your situation, the LX is overkill and the value math does not close. Where the math does close is if you own a quality panel, move your monitor frequently, work multiple daily hours at your desk, or share a workstation across different-height users.

The 10-year warranty is not marketing decoration. Ergotron's replacement process for faulty joints and worn friction mechanisms is genuinely straightforward - I have processed a warranty claim on a colleague's older LX and it was handled without receipts inside two weeks. For a desk accessory that will outlast two or three monitor generations, that warranty is structural value, not a checkbox. The build score of 9.4 in our system reflects aluminum construction that still feels tight after years of use on units I have borrowed from long-term users, and the joint mechanisms show no sign of the plastic creep that kills cheaper arms within 18 months.

The LX belongs on any desk holding a monitor worth caring about. If you spent $400 or more on a display, spending $159 to position it correctly is not optional - it is the completion of the purchase. Sim racers running ultrawide setups, color-critical creatives who need fast portrait flips for long-document work, developers with dual external monitors in a hot-desk environment, and anyone who has ever woken up with a stiff neck from a monitor that sat two inches too low for their chair height: this is the arm that removes those variables and removes them permanently.

Lin, Scout Gear Team
